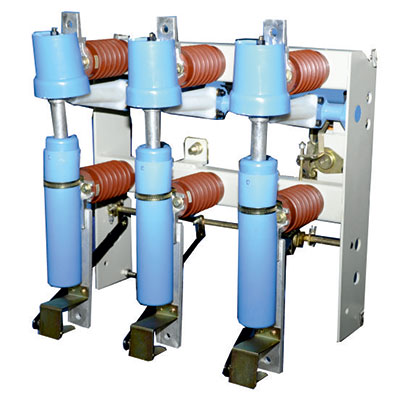

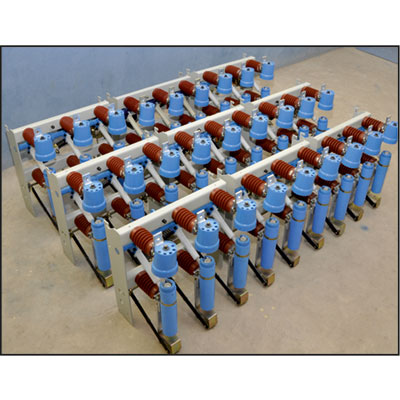

11/12.kv Load Break Switches
The 11/12kv LBS is suitable to use in indoor & outdoor application PANEL / KIOSK/RMU. The Load Break switches can be used for the switching ON & OFF of Transformers & IN & OUT operations. The Switch has auxiliary contacts & may be used for ON & OFF Indications. The Switch has optional Earth Switch & Provision for Striker Pin HRC Fuses which works as a protection for Transformer.
The Type Tests conducted by us in CPRI Bangalore (Ref. Nos ) is as follows ( As per IEC & IS Standards) :
- Short Circuit :SC15S0692 (26.3KA rms for 1 sec)
- High Voltage : HVML2014S0617 (12/28/75KV)
- Temperature Rise :SC15S06 (at 630 Amps)
- Mechanical endurance Tests for 1000 operations as per customer instruction
Devaraj B.N
+91 9448683397,
9538288710, 9741334252
