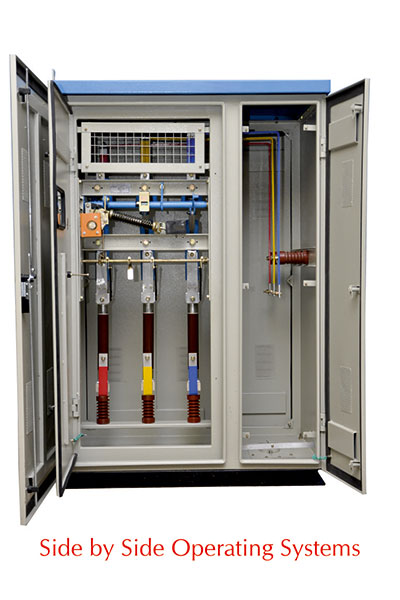

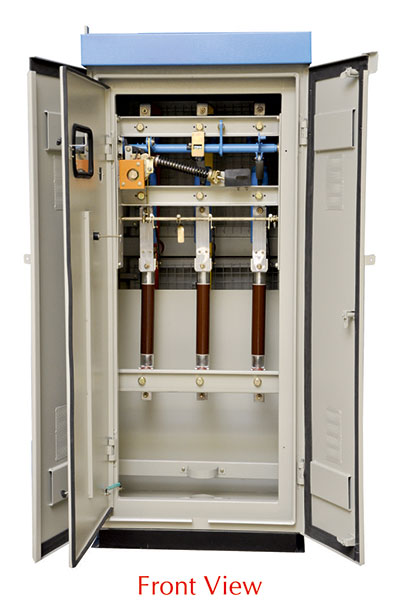

11/12kv Load Break Switch Panel
The 11/12 kv Switching Panel with LBS is suitable for Indoor & Outdoor applications. The Switching Panel consists of a Load Break Switch that can be used for Switching ON & OFF of the transformer. The HRC Fuses used conforms to IS Standards. The Protection / Tripping System is implemented through fuses (Striker pin) & relays and assembled with suitable bus bars. The Panel is Powder Coated with 80-120 microns for its Inner /outer texture with High Quality Process.
The Type Tests conducted by us in CPRI Bangalore (Ref. Nos) is as follows (As per IEC & IS Standards):
- Short Circuit :SC15S0692 (26.3KA rms for 1 Sec)
- High Voltage : HVML2014S0660 (12/28/75KV)
- Temperature Rise :SC15S06 (at 630 Amps)
- IP 55 : EATDHVLM2014s0660 (Category 2)
Application:
They are used in Residential / Commercial/Large & Small Industrial Uses.
