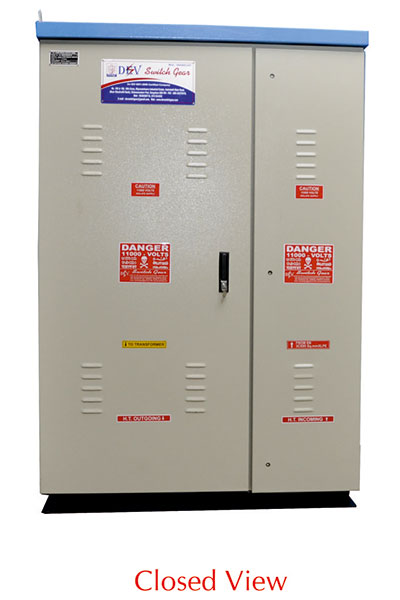

11/12kv Metering cubicle is manufactured with zero bushings i.e. the outgoing and incoming cables are provided with the bottom cable entries as per EB’s. The cubicle is divided into four chambers chambers –one for incoming, one for outgoing ,One for CT’s & PT’s and one more for energy meter. The cubicle is dust proof and pilfer resistant / non tamperable. The cubicle is available in 3Ph.4W Systems. Sealing facilities are as per EB Norms and assembled with suitable bus bars and the Cubicle is powder coated with 80-120 microns for its inner / outer texture with High Quality Process.

The Type Tests conducted by us in CPRI Bangalore (Ref. Nos) is as follows (As per IEC & IS Standards):

• Short Circuit :DCCDHRT2014S0080 (20KA rms for 1 sec)
• High Voltage : HVML2015S0659 (12/28/75KV)
• Temperature Rise :DCCDHRT14S0080 (200 Amps)
• IP 55 : EATDHVML2014S0659
